AUTEL Dragonfish Pro with L20T Camera Payload is a long‑endurance tilt‑rotor VTOL unmanned aircraft system designed for industrial and government aerial operations that require extended flight time and multi‑sensor data collection. The Dragonfish Pro combines multi‑rotor vertical takeoff and landing with fixed‑wing cruise efficiency, enabling runway‑independent deployment and long‑range mission execution. The aircraft supports one‑key automatic takeoff and landing, intelligent tracking, terrain following, pointed flight, and fast task functions, allowing operators to conduct complex missions with a streamlined workflow. Its IP43‑rated airframe, rapid assembly process, and built‑in system self‑check support reliable operation in demanding field environments.

Integrated with the L20T camera payload, the Dragonfish Pro supports applications such as public safety operations, law enforcement support, search and rescue, infrastructure inspection, and long‑range surveillance. The L20T payload combines multiple sensors into a single stabilized system, including a 4K 20x optical zoom camera, a 12‑megapixel wide‑angle camera, a 640x512 resolution infrared thermal sensor, and a laser distance measurement radar. This multi‑sensor configuration enables both detailed visual inspection and thermal detection from extended distances. Paired with dual‑engine RTK and GNSS positioning and a long‑range image transmission system, the Dragonfish Pro is designed for accurate data acquisition and repeatable results across professional aerial workflows.

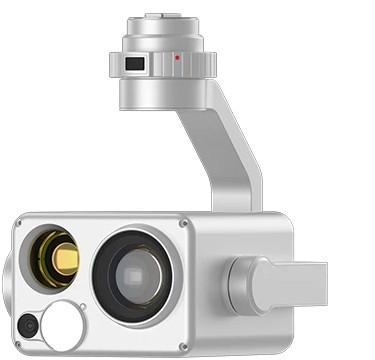

L20T CAMERA PAYLOAD

Autel Robotics DG-L20T payload designed for the Dragonfish Standard and Pro airframes. The DG-L20T features four different lens configurations, which include 4K 20x optical zoom/12MP wide-angle/640x512 high resolution infrared and a laser distance measurement radar system. The DG-L20T is packed with features that have never been seen before on a single payload. The L20T was designed for commercial and government applications, making it a useful tool for law enforcement and search and rescue operations.

Key Features:

• Tilt‑rotor VTOL design combining vertical takeoff and landing with fixed‑wing endurance
• Up to 180 minutes of flight time with payload
• IP43‑rated airframe with rapid 3‑minute assembly and 5‑second system self‑check
• Long‑range dual‑frequency image transmission up to 30 km
• L20T camera payload with 4K resolution and 20x optical zoom
• 12 MP wide‑angle camera for broad area situational awareness
• 640x512 resolution infrared thermal sensor for heat detection and monitoring
• Integrated laser distance measurement radar
• 3‑axis stabilized gimbal for consistent, high‑quality imaging
• Dual‑engine RTK and GNSS positioning for high‑precision operations
