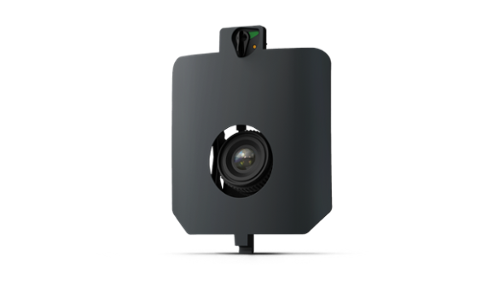

The Wingtra MAP61 Payload is engineered for high-resolution 3D reconstructions and large-scale mapping projects, featuring a 61-megapixel full-frame sensor and a wide 93-degree field of view. This payload enables fast data capture, saving both field and processing time, and delivers reliable accuracy down to 2 cm horizontally and 4 cm vertically. Its VTOL (vertical take-off and landing) capability allows for flexible deployment in diverse environments, while seamless integration with WingtraCLOUD simplifies data processing regardless of user skill level. The MAP61 is ideal for mining and metals, land management, urban planning, and construction, supporting safer remote surveying, precise parcel boundary capture, and efficient corridor mapping without disrupting traffic.

With a payload weight of 585 g and a 17 mm lens in a low oblique configuration, the MAP61 achieves a ground sampling distance as low as 1.2 cm/px and covers up to 460 hectares in a single flight at 120 meters altitude. Its technical design supports high-resolution imaging for detailed analytics in slope, rock composition, and infrastructure monitoring. The MAP61’s automated geotagging and rapid trigger time further enhance workflow efficiency, making it a trusted solution for professionals in surveying, environmental monitoring, and large-scale asset management.

Key Features:

• 61 MP full-frame sensor with 17 mm lens
• Wide 93° horizontal field of view for efficient coverage
• VTOL capability for flexible take-off and landing
• Horizontal accuracy down to 2 cm, vertical accuracy down to 4 cm
• Covers up to 460 ha in a single flight at 120 m altitude
• Minimal trigger time of 0.5 seconds and minimal trigger distance of 8 meters
• Ideal for mining, land management, urban planning, construction, and infrastructure monitoring
